We make sure that each product we manufacture of the highest quality with best the delivery time. A highly energetic team of professionals with strong sense and customer focus has been working to take the products to next level.
ISO Certification
Services Offered
Features
- Electro-Mechanical Design
- Very High Operating Accuracy
- Design Flexibility for easy operating characteristics
- Hand reset contacts with mechanical flag.
- Simple and Reliable Construction
- Compact Panel Mounting case.
- Operating time < 10ms
- Contact Combination : As per requirement. Applications
- Contact Combination : As per requirement.

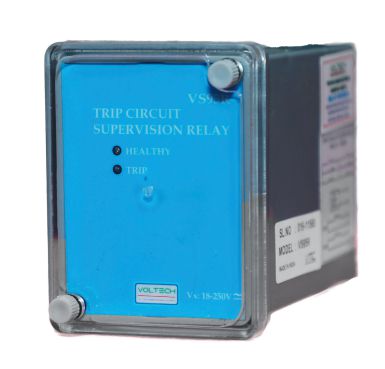

Features
- Micro Controller Based Economic Design
- Very High Operating Accuracy
- Design Flexibility for easy operating characteristics

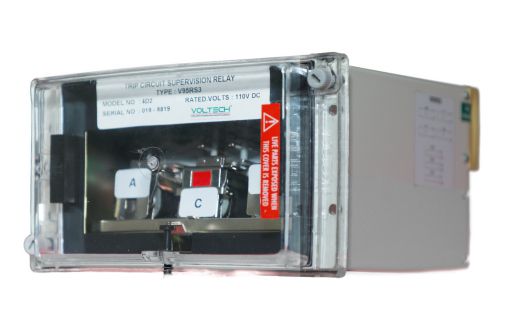

- Monitors Circuit Breaker 52a & 52b auxiliary switches in open and close position
- >300ms Time Delay to avoid nuisance alarms during normal CB Operation
- Simple and robust construction
- Positive action without chatter
- Choice of pre-closing and post-closing supervision
- Post-closing or continuous supervision of the trip circuit of circuit breakers
- Hand reset operating indicator provided
- Type test : CPRI Bangalore

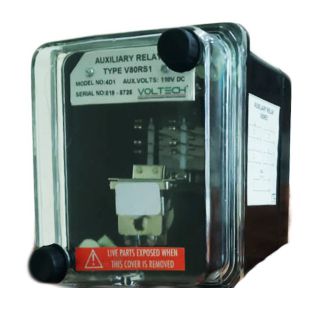

Features
- Very High Operating Accuracy
- Design Flexibility for easy operating characteristics
- Hand reset contacts with mechanical flag.
- Simple and Reliable Construction
- Compact Panel Mounting case.
- Operating time < 10ms
- Contact Combination : As per requirement Applications
- Control, Alarm, Indication and other Auxiliary duties in AC or DC systems. Contact Multiplication
- Micro controller Design
- Simple and reliable construction
- LED indication for Healthy & Trip
- Heavy duty contacts
- Flush panel mounting
- Type test : CPRI Bangalore
- Aux volts 18 – 250V AC/DC
- Micro controller Design
- Simple and robust construction
- Positive action without chatter
- Wide Range (24 – 220 AC/DC )
- Single and Two element also available
- Type test : CPRI Bangalore
- Micro Controller Based Economic Design
- Very High Operating Accuracy
- Design Flexibility for easy operating characteristics
- Both 1A & 5A CT Inputs in a relay
- Both AC & DC auxiliary supply available. (18-250V AC/DC)
- Communication Protocol 61850 for SCADA (RS485) and USB port for program loading.
- Password Protected

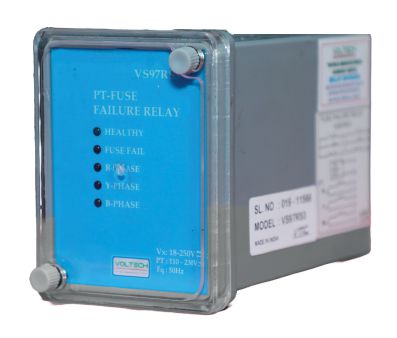

- Micro Controller design
- Very High Operating Accuracy
- Detects 1, 2 and 3 phase fuse failure in <8ms>.
- Universal Auxiliary Voltage (20-250V AC/DC) with Low burden.
- Less burden on PT.
- Separate LED indications for all Three Phases.
- Compact Robust Construction.
- Micro Controller Based Economic Design
- Very High Operating Accuracy
- Design Flexibility for easy operating characteristics
- Monitors Circuit Breaker 52a & 52b auxiliary switches in open and close position
- >300ms Time Delay to avoid nuisance alarms during normal CB Operation.
- Simple and robust construction

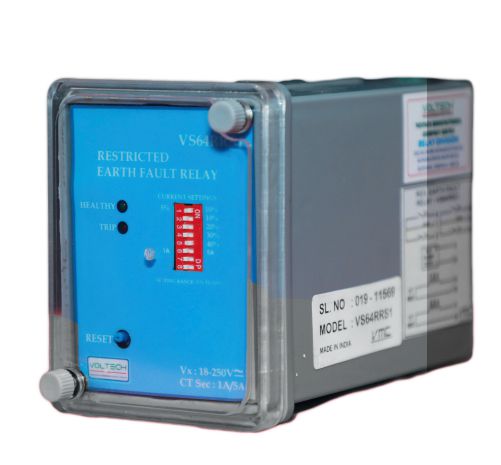

- Micro controller Design
- Sensitive high speed protection on internal faults.
- Wide Range of Aux voltage (18 – 250V AC/DC)
- Using with Transformer, reactor , generator ,Motor
- 1A/5A Current Transformer Selectable
- Single and triple pole relays respectively
- Type test : CPRI Bangalore
- Micro Controller Based Economic Design
- Very High Operating Accuracy
- Design Flexibility for easy operating characteristics
- Both 1A & 5A CT Inputs in a relay
- Both AC & DC auxiliary supply available. (18-250V AC/DC)
- RS232 serial port for program loading.
- Password Protected Applications

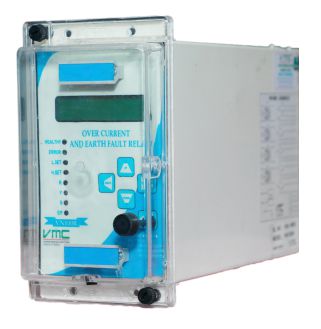

- VN100R is suitable for all the applications where over-current and earth fault protection are required.
- VN100R provide a comprehensive suite of automation features for easy and flexible adaptation under different operating conditions.
- Micro Controller Based Economic Design
- Very High Operating Accuracy
- Design Flexibility for easy selection of operating characteristics
- Both 1A & 5A CT Inputs in a relay.
- Both AC & DC auxiliary supply available. (18-250V AC/DC)
- Communication Protocol 61850 for SCADA (RS485) and USB port for program loading.
- Password Protected Standards
- IEC - 60255-151 O/C & E/F
- IEC - 60255-127 U/V & O/V
- Directional - 60255 - 12
- Micro Controller Based Economic Design
- Very High Operating Accuracy
- Design Flexibility for easy operating characteristics
- Both 1A & 5A CT Inputs in a relay.
- Universal wide range power supply unit. (18-250V AC/DC)
- Fault Indication via LED’s
- Communication Protocol 61850 for SCADA (RS485) and RS232 serial port for Program loading.
- Password Protected. Standards
- IEC - 60255-151
- IEC - 60255-127
- IEC - 60255-149
All Products (Electromechanical/Static/Numerical) are type tested in CPRI, Bangalore / ETDC, Chennai.
| Sl.No. | Name Of the Customer & Details |
|---|---|
| 1 | TANGEDCO |
| 2 | TANTRANSCO |
| 3 | OPTCL |
| S.No | Credential Details |
|---|---|
| 1 | Successfully completed TANGEDCO Chennai north Purchase order on time |
| 2 | Successfully completed TANGEDCO Chennai south-(1) Purchase order on time. |
| 3 | Successfully completed static relays (DC U/V Relay, DC O/V Relay, Battery E/F & AC U/V Relay) to various location in tamilnadu for TANGEDCO & TANTRANSCO. |
| 4 | Successfully completed TANGEDCO Krishnagiri Purchase order on time. |
| 5 | Successfully completed TANGEDCO Thanjavur Purchase order on time. |
| 6 | Successfully completed TANGEDCO Udumalpet Purchase order on time. |
| 7 | Successfully completed TANGEDCO Tiruvarur Purchase order on time. |
| 8 | Successfully completed TANGEDCO Ponneri Purchase order on time. |
| 9 | Successfully completed TANGEDCO Ramanathapuram Purchase order on time |
| 10 | Successfully completed TANGEDCO Periyapalayam Purchase order on time |
